Compact ink recirculation system "CC1"

Compact ink recirculation system "CC1"
Compact and light-bodied ink recirculation system with all required functions prepared.

Compact and light-bodied ink recirculation system with all required functions prepared

  1. The world's smallest and lightest*1Compact and light-bodied
  2. Employs all required functions, - the control of ink temperature, flow rate and meniscus pressure
  3. Dedicated control software enables ink recirculation in combination with inkjet head model CF1 and CF3R series
  4. Eco-friendly ink recirculation system reducing ink wastage at evaluation
  • *1:
    Internal investigation as of October, 2018 Designed to mount directly with inkjet head, incorporating all required components for ink recirculation such as pumps, sensors, and control board.

Features

1. Direct connection with CF1/CF3 series ink recirculation inkjet head

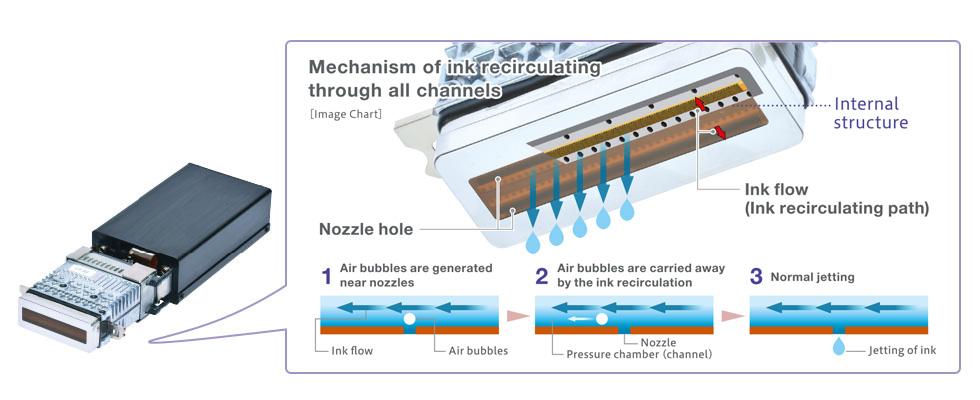

Mechanism of ink recirculating through all channels

2. Example: Mounting of ink recirculation system [CC1] with ink recirculation head

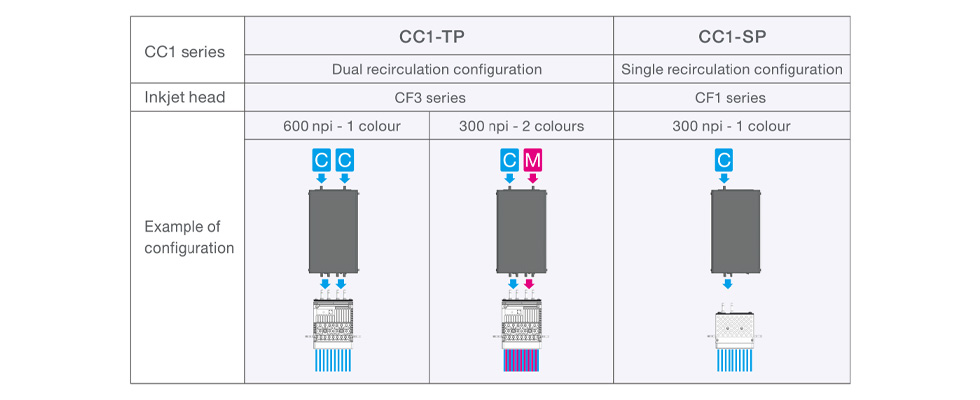

Up to 2 colours of ink recirculation per 1 system (300 npi)

Example: Mounting of ink recirculation system [CC1] with ink recirculation head

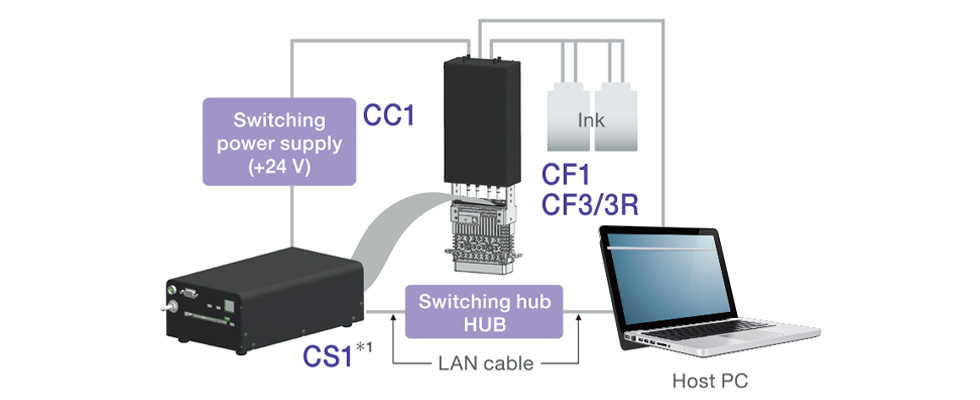

3. Example : configuration of evaluation system

Easy to set up evaluation system by direct connection with CF1/CF3 series and dedicated control software

Example : configuration of evaluation system

  • *1:
    Inkjet head controller board for CF3 [Mounting of CC1 onto CF1/CF3 series requires auxiliary mounting tools.]

Specifications

CC1-SP CC1-TP
Compatible head CF1B/CF1BL CF3/CF3R/CF1BXL
(CF1BXL is used with 1 recirculation configuration)
Number of circulation flow path systems Single system Dual system
Ink temperature setting range Up to 60 °C
Heater Included
Ink-warming performance Ambient temperature +20 °C
Circulation flow rate 50 mL/min CF3/3R: 35 mL/min
CF1BXL: 50 mL/min
Meniscus pressure adjustment range 0~-3.0 kPa
Minimum circulating ink Volume 20 mL
Power supply DC24 V 3 A or higher
Environmental conditions for usage 5~35 °C, 20~80 %RH, with no condensation
Ink type Conforms to the inkjet head (consult us for compatibility assurance)
Size, weight 83 mm (W) x 40.5 mm (D) x 141.5 mm (H) (excl. boss)
280 g
83 mm (W) x 40.5 mm (D) x 141.5 mm (H) (excl. boss)
360 g
Necessary hardware for customers PC, Power Supply
PC connection method USB 2.0
Operation software Windows 10 dedicated application
  • The specifications above may change depending on the type of ink used.
  • The specifications above and appearance may be modified due to certain circumstances.
