Inkjet Head "CF3/CF3R"

Inkjet Head "CF3/CF3R"
One-and-only industrial inkjet head having both 300 npi/row (doubled from our previous model) and ink recirculation through all channels.

One-and-only industrial inkjet head having both 300 npi/row (doubled from our previous model)
and ink recirculation through all channels

  1. Inherits high jetting reliability and eco-friendliness enabled by ink recirculation through all channels
  2. Suitable for jetting ink with larger particle size and higher gravity
  3. Use of 2 colours in one head enabling the printer to be more compact
  4. Able to control drop volume per each nozzle, minimizing density variation

Features

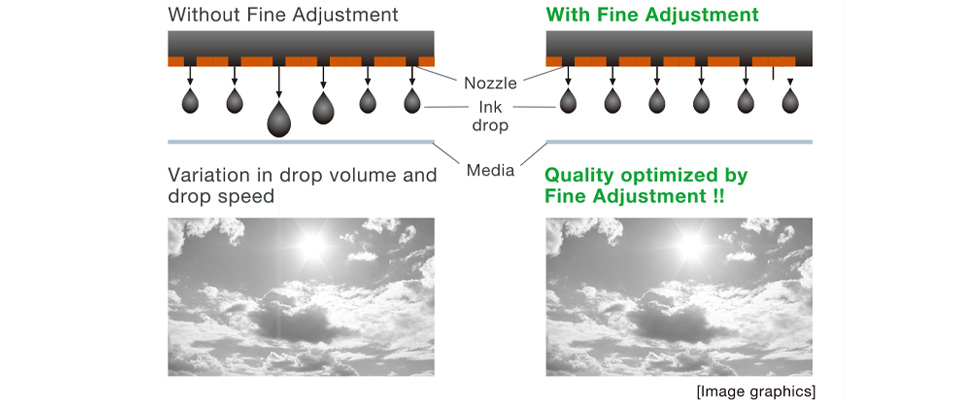

1. Per each nozzle drop volume control(Fine Adjustment)

The function to control drop volume per each nozzle, contributes to enhance image quality much further

Per each nozzle drop volume control(Fine Adjustment)

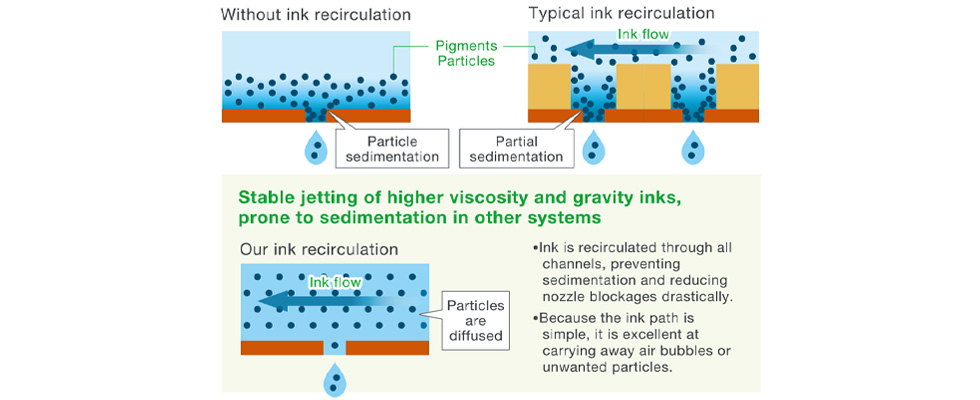

2. Feature of ink recirculation through all channels inkjet head

Feature of ink recirculation through all channels inkjet he

Specifications

1 colour 2 colours
Print method On-demand piezo technology
Ink recirculation structure Ink recirculation through all channels
Print width 53.95 mm 53.91 mm
Number of nozzles 1,278 639
Nozzle resolution 600 npi 300 npi
Number of rows 2
Nozzle spacing (row-to-row distance) 7.94 mm
Greyscale levels 6 levels/0~5 drops
Drop volume 20 pL/5 drops
Minimum drop volume 3~4 pL
Frequency 9.2 kHz/5 drops
Printhead power voltage +7 V~+15 V, -7 V~-15 V
Driver circuit power voltage 5 V, 24 V
Ink types UV-curing & oil-based (consult us for compatibility assurance)
Built-in temperature sensor Included
Head cooling method CF3: Air-cooling
CF3R: Water-cooling (includes water cooling port)
Size, weight CF3: 96.7 mm (W) × 29.3 mm (D) × 100.7 mm (H), 255 g
CF3R: 96.7 mm (W) × 31.3 mm (D) × 100.7 mm (H), 285 g
  • CF3 is a native 600 npi head with 1st and 2nd row nozzles laterally offset from each other by 1/600". Dot positions for 2 colors are offset accordingly.
  • Gradation levels and drop volumes depend upon the type of ink used. Maximum printing speed and linear frequency can be increased by reducing the number of drops per dot (dpd).
  • Six different types of power supplies ( : 5 V, 24 V, two units of +7 ~ +15 V and two units of -7 ~ -15 V ) are required in order to drive head.
  • The specifications above may be modified due to certain circumstances.
